Description
blaupunkt led display e bike Blaupunkt Henri Grey/Black – The Bicycle StoreFoldable magnesium alloy frame from a single die cast mold. Lightweight design, weighing only 47 lbs. including the battery. Pedal and throttle assist with a 3 stage control, conveniently adjusted through the LCD computer. Class 2 e Bike, providing a maximum speed of 20mph . Equipped with high quality NUTT hydraulic disc brakes. Powered by an LG Li ion battery 36V, 10. 5Ah, providing range up to 44 miles Blaupunkt rear hub motor a 36V 350W, brushless
- Foldable magnesium alloy frame from a single die cast mold.
- Lightweight design, weighing only 47 lbs. including the battery.
- Pedal and throttle assist with a 3-stage control, conveniently adjusted through the LCD computer.
- Class 2 e-Bike, providing a maximum speed of 20mph .
- Equipped with high-quality NUTT hydraulic disc brakes.
- Powered by an LG Li-ion battery 36V, 10.5Ah, providing range up to 44 miles Blaupunkt rear hub motor a 36V 350W, brushless motor, delivering 50Nm of torque.
- Fold-down capability, reducing its size to31x20x23 inches.
- Magnetic closure system to securely keep the bike folded in place.
- Roller blade-style wheel located at the bottom of the frame, allowing smooth portability.
- Equipped with 20" x 2.125" puncture-resistant tires, providing durability and peace of mind.
- Features a Shimano 6-speed SIS derailleur with a free wheel for efficient gear shifting.
- The battery case is removable and lockable, conveniently located inside the frame.
FEATURES
Payload Capacity - 120 kg (264 lb)
Total Weight – 21.5kg (47 lb)
Max Power – 350W
Range – 100km (44 Miles)
Max Speed – 32 km/h (20MPH)
Store Pickup Only: Please contact us to confirm availability. Once ordered, it will take 4 to 7 days for delivery and ready for pickup at The Bicycle Store-Florham Park, NJ
SPECIFICATIONS
| Frame | Magnesium Alloy |
| Rims | Magnesium, Black Powdered |
| Tires | 20“x 2.125 |
| Shift lever | Shimano 6- gear SIS derailleur (44T / 14T-28T ) |
| Brakes (front/ rear) | Tektro disc brakes, mechanical, 160 mm |
| Headset | Semi integrated |
| Max. Payload | 120 kg |
| Engine | Rear hub motor Xiongda XD-20GS, DC 36 V/ 250 W, 50 Nm, IP54, brushless, maintenance free |
| Battery | 36 V/ 10,5 Ah LG- Lithium- Ion battery w. integrated BMS |
| Controller | 36 V/ 15 A DC |
| Sensors | Cadence- & Speed Sensor |
| Driving Modes | 3 level PAS/ PAS off |

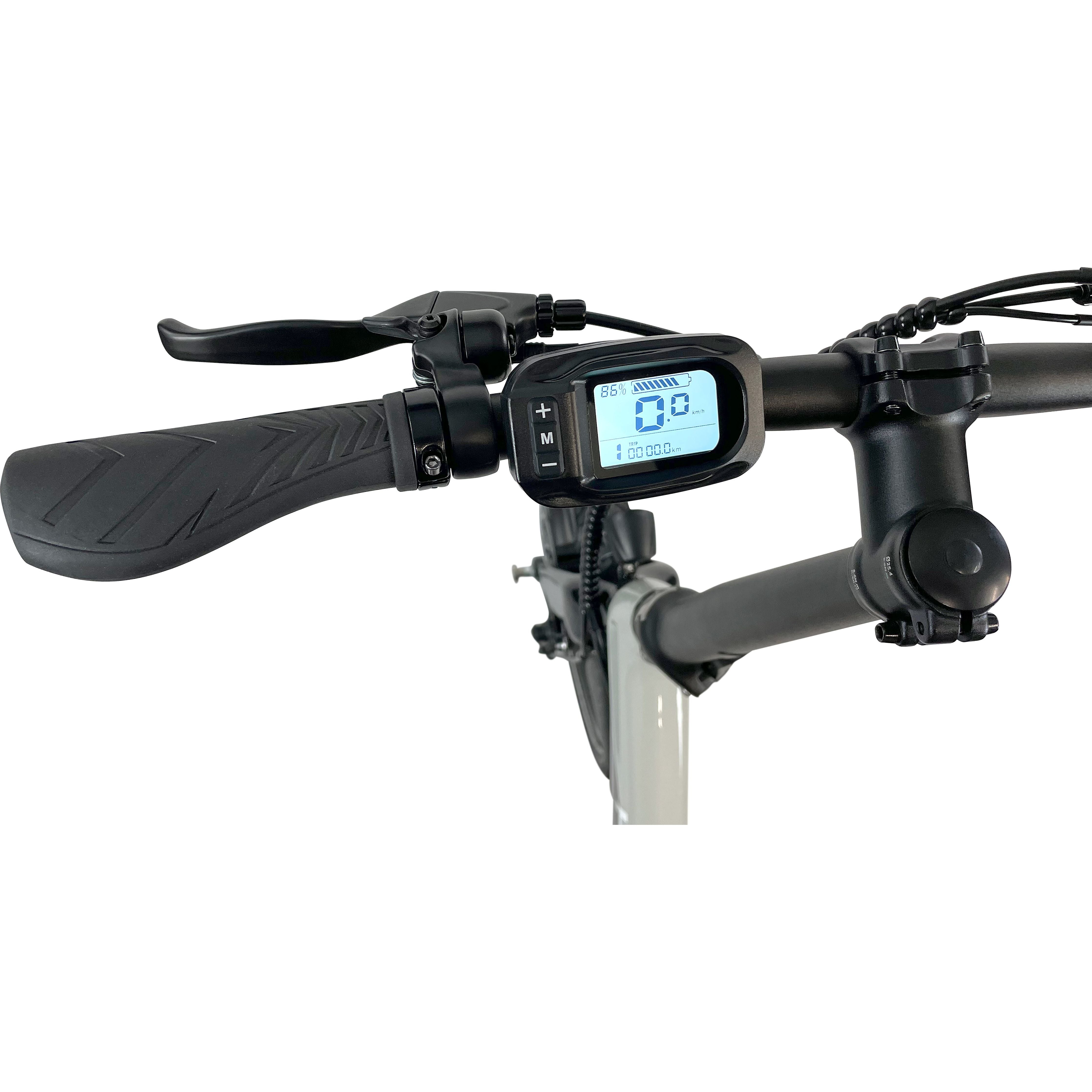

| Bike Computer | LC- Display with 3 function keys, backlight. Functions: Speed, ODO, TRIP, TIME, PAS LEVEL, battery, lights, auto- power- off, error display |
| Charger | Switching power supply (AC 100 – 240 Volt), 42 V, 2A Charging time: about 4- 6 h |
| Range | Up to 70 km/ 45 miles (1) |
| Max. Speed (PAS) | Max. 25 km/h |
| Lamps/ Reflectors | LED- headlight with reflector, EPAC powered Rechargeable USB LED- battery rear light at saddle stem Z- reflector, Pedals w. integrated reflectors |
| Mudguards | Yes, included accessories |
| Kickstand | Yes, left sided at rear axle’ |
| Pedals | Foldable |
| Battery Removable | Yes |
| Battery Lockable | Yes, included accessories |
| Charging if installed/ removed | Yes / Yes |
| Battery Indicator | Yes, computer display |
| Additional Battery | Optional |
| Chain Protection | Yes, integrated |
| Luggage Carrier | No |
| Bell | Yes, integrated on brake lever |
| Sprung Seat Post | No |
| Suspension Fork | No |
| Carry Bag | Optional |
| Handlebar Bag | Optional |
| Size (unfolded) | About 1530 x 570 x 1080 mm (L x B x H) |
| Size (folded) | About 850 x 500 x 600 mm (L x B x H) |
| Wheel Size | 20“x 2,125 |
| Handlebar Height | 1040 mm |
| Handlebar | 570 mm |
| Saddle Height | 870- 930 mm |
| Seat Post | Ø 31.6 mm, 300 mm (optional 400 mm) |
| Wheelbase | 1010 mm |
| Chassis Clearance | 200 mm (till transport wheel) |
| Frame Size | 600 mm |
| Weight include Battery | about 21 kg |
| Battery Weight | about 1.5 kg |
| Color | racing-orange/ black |
| Scope of Delivery | E-Bike, Charger, Rechargeable battery tail light (with micro- USB cable, power adaptor not included), Mudguards, Battery with 2 keys, User Manual) |
| Replacement Battery | Part Number 2 008 020 111 069 |
| Certifications | EPAC DIN EN 15194:2017, CE, StVZO, UN38,3, IPX4 |
| Box Dimensions | about 850 x 430 x 640 mm (L x W x H) |
| Box Weight | about 4 kg carton, 0,1 kg foam 0,01 kg PVC (foil, cable ties…) |
| Weight Total | about 26.5 kg |
| Customs Tariff Number | 87116010 |
*The range depends on the load, driving style and area of use (2) Subject to modification
DESIGN
VIDEO
UL CERTIFICATION
UL 2849 Certification Blaupunkt (Click to View or Download)
UL 2271 Certification Balupunkt (Click to View or Download)
USER MANUAL
